- Complete solutions
Adaptable to requirements
Dosing Kits

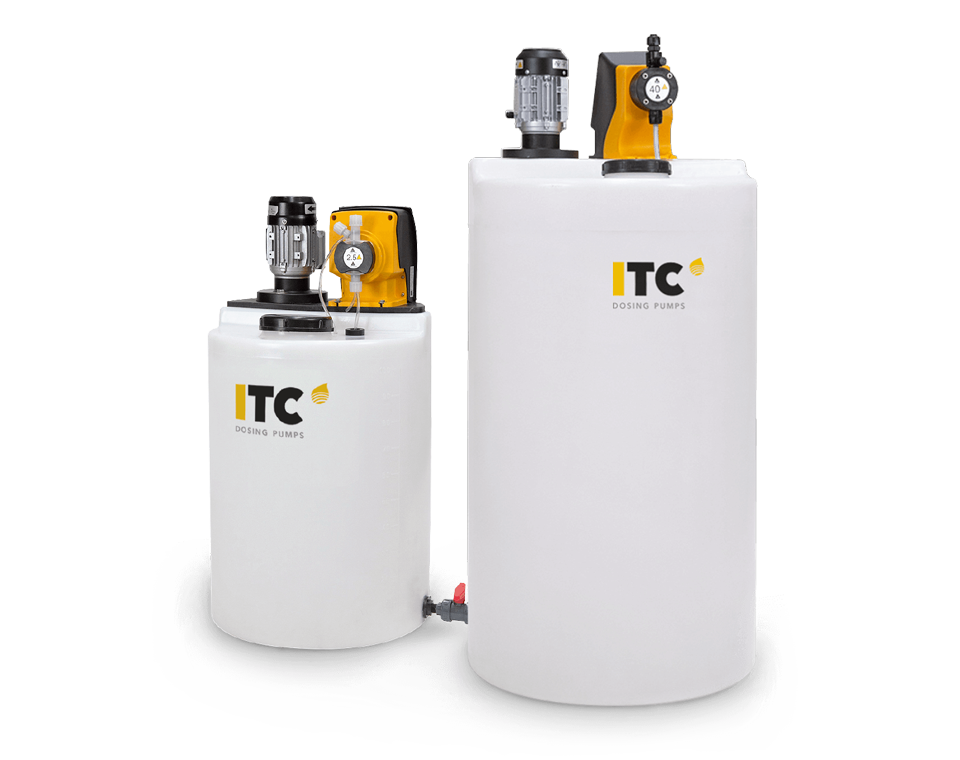

Preparation and injection of stock solutions. Autonomous and easy to install dosing equipment
Highlights
- Plug&Play configuration
- Pre-assembled turbine agitator and manual or advanced control dosing pump
- Available in standard sizes of 100, 125, 250, 350, 500 and 1.000 liters
Product information

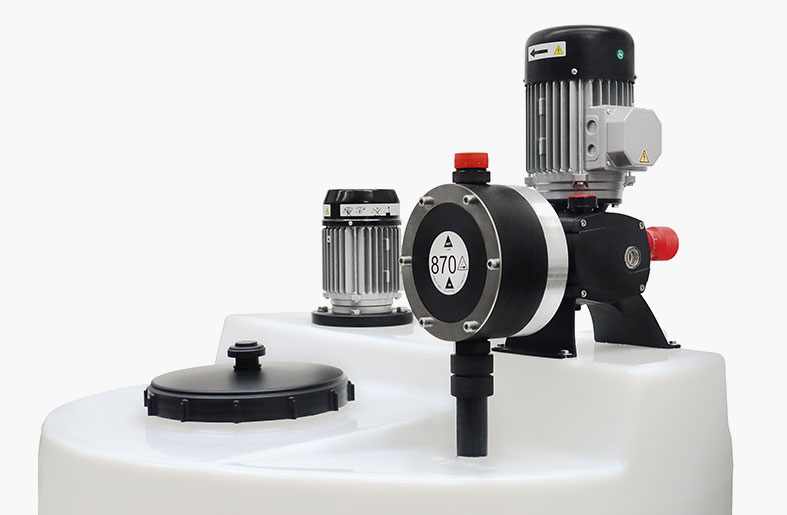

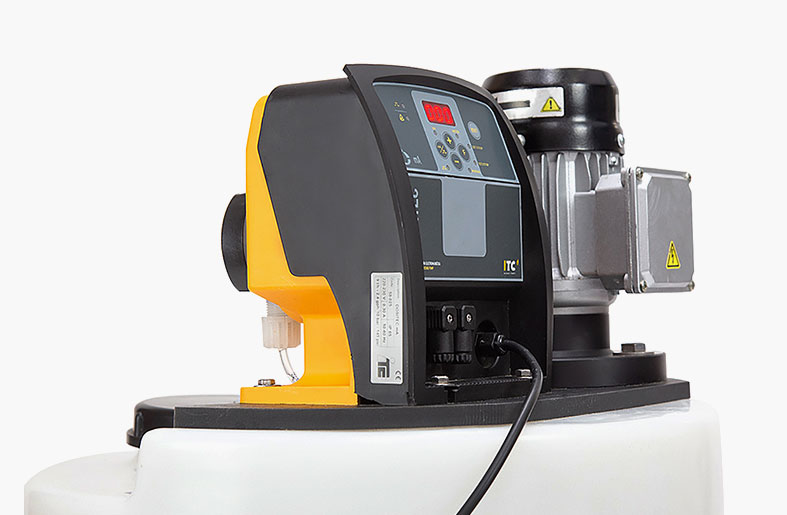

ITC's Plug&Play dosing kits integrates a linear polyethylene enriched UV tank, a turbine agitator and a mechanically driven or an advanced control dosing pump, making it a complete and autonomous dosing equipment solution.
- Fully customizable, pre-assembled dosing kits that combine a turbine agitator with an electric or magnetic metering pump
- Suited for liquids of different viscosities up to 1.000 liters
- Conceived to mix, dilute, dissolve or stir impeding sedimentation and maintaining product homogeneity
- Optimal for dosing nitrates, fertilizers or phytosanitary products in agricultural facilities. For chemicals in industrial processes consult the technical department for compatibility with HDPE
- Easy to install, only requires a power supply and an injection point, lowering on-site installation and start-up costs

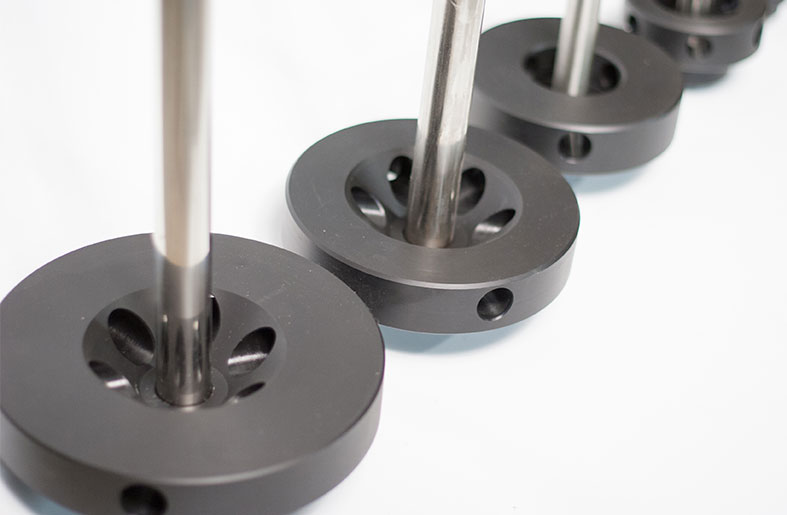

Configurable range of agitators according to the stored liquid
ITC’s range of turbine agitators provides the flexibility to perfectly suit any tank size. All models are available with a 12V DC motor, ideal for use in areas without mains electricity or single-phase power.
- Mixer 1.5 – tanks up to 10.000 litres
- Mixer 2.0 – tanks up to 7.000 litres
- Mixer 1.3 – tanks up to 3.000 litres
- Mixer 1.1 – tanks up to 800 litres
- Mixer 0.6 – tanks up to 200 litres
The right tank for the right application
Our dosing kits are specifically conceived for integration into mixing, dosing and additive incorporation systems.
- Available in standard sizes: 100, 125, 250, 350, 500 and 1.000 liters
- Maximum product density: 1.9
- Reinforced top: designed to support agitators and dosing pumps
- Upper opening: leak-tight screw cap, Ø 125
- 500 and 1.000 liters models: Ø 250 manway access with screw cap and Ø 20 vent
- Standard colour: natural translucent white
The Practical Choice for Installers and Manufacturers
With the Dosing Pump Ground Base, professionals get a turnkey solution that:
- Reduces installation time
- Minimizes wiring and piping errors
- Standardizes assembly across multiple units
- Simplifies maintenance and future service tasks
- Ensures a clean, highquality final presentation
Whether you’re installing a single pump or equipping an entire fleet of pivots, this Ground Base offers a reliable, efficient, and cost-effective foundation for any Dostec dosing system.
