DOSmart AC

The Most Advanced Dosing Solution
ITC  /   DOSmart AC

Highlights

  • High suction capacity
  • Flow calibration
  • Analog control (0/4-20mA)
  • Proportional pulse control
  • Batch dosing control
  • Manual Flow control
  • Débit
    1.5-60 l/h (0.40-15.80 GPH)
  • Pression maximale
    16 bar (232 PSI)

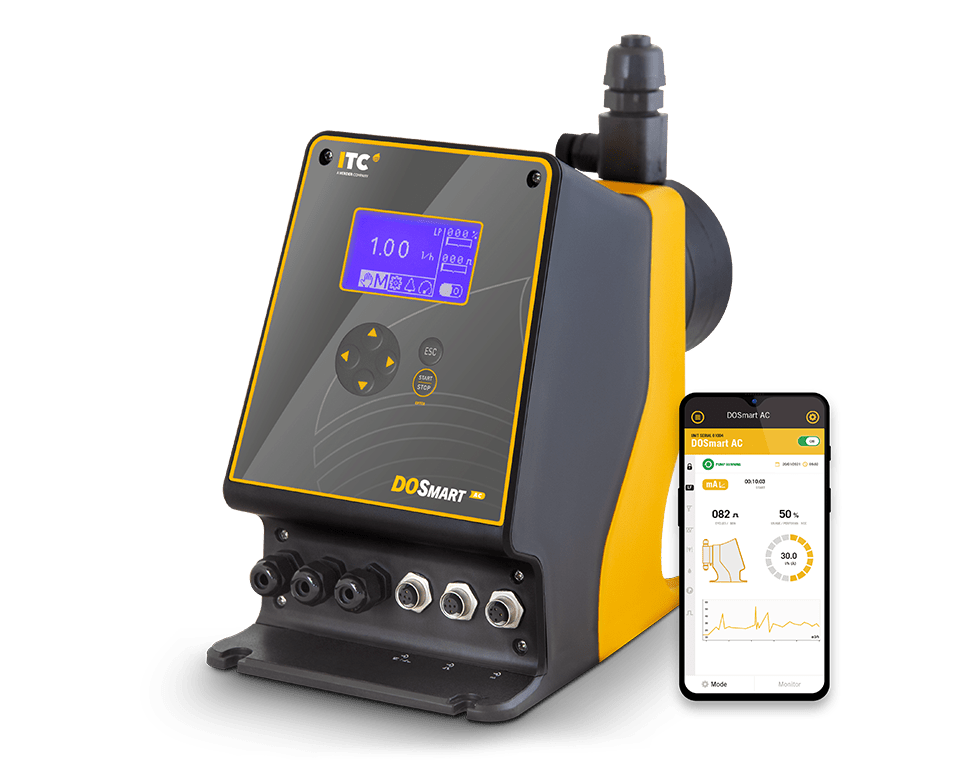

DOSmart AC - Vista frontal

Information produit

Logo DOSmart AC

DOSmart AC is a series of dosing pumps with a step motor and advanced control functions to automate precisely and efficiently the dosing of chemicals in liquid state.

This series of pumps is characterized by high precision, extensive regulation (1:3000) and high suction capacity even with viscous products. The flow range covers needs from 1.5 to 60 l/h at a pressure of up to 16 bar. The choice of the correct head material between PP, PVDF and stainless steel allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries.

There is an APP available for DOSmart AC pumps which allows to monitor and control easily the unit remotely. The APP also has the option to receive alarm messages through SMS and email.

Advanced Dosing Functions

(ST) STANDARD
100% Operation | 50% Operation

DOSmart AC ADVANCED DOSING FUNCTIONS - (ST) STANDARD

(SS1) SLOW SUCTION
Slow suction cycle for a reliable dosing for high viscosity fluids

DOSmart AC ADVANCED DOSING FUNCTIONS - (SS1) SLOW SUCTION

(SS2) SLOW SUCTION AND DISCHARGE
Slow suction cycle for a reliable dosing for high viscosity fluids

DOSmart AC ADVANCED DOSING FUNCTIONS - (SS2) SLOW SUCTION
ModèlesDébitPression maximaleTurndown ratioCourseCycles/min.
l/hgphBarpsimm
55-STAS50-D50 55-STDS50-D501.50.40162321:3000250
55-STAF50-D50 55-STDF50-D5041.05121741:3000295
55-STAF30-D50 55-STDF30-D5082.1081161:30002150
55-STAF51-D50 55-STDF51-D50133.4071001:30004.591
55-STAF31-D50 55-STDF31-D50256.605721:30004.5162
55-STAF41-D69 55-STDF41-D694010.503441:30004.5113
55-STAF31-D69 55-STDF31-D696015.802291:30004.5164

ÉLECTRIQUE
Monophasique: 100-250 Vac (50/60Hz) / 24 Vdc
Puissance: 32 W

MATÉRIAUX
Membrane: PTFE
Cylindre: PP / PVDF / INOX
Clapet (coprs): PP / PVDF / INOX

POIDS ET DIMENSIONS
4.5 kg/10 lb

DOSmart AC - WEIGHT AND DIMENSIONS

Manuals



Data sheets and software

FilenameENESFR
DSM001 DOSmart AC Technical_features


ACC016 Foot valve L ¾” with filter
ACC056 Injection valve L ¾” 15l/h
ACC057 Injection valve L ¾” 60l/h
