- Flow
1.5-60 l/h (0.40-15.80 GPH) - Maximum pressure
16 bar (232 PSI)

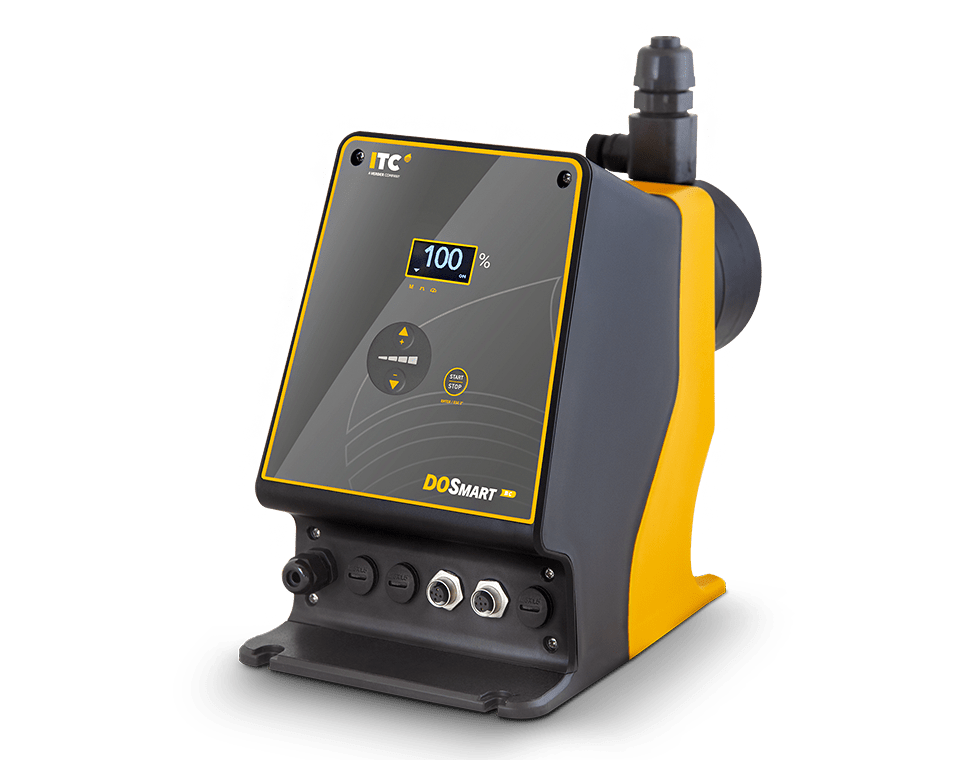

DOSmart BC
Step by Step diaphragm pump
Highlights
- High suction capacity
- Manual Flow calibration
- Proportional pulse control
Product information
Dosmart BC represents the latest in metering pump innovation, designed with a special focus on improving efficiency in the agricultural sector. Equipped with stepper motor technology, this state-of-the-art pump has been meticulously designed to meet the high standards of pH control and disinfection required by farmers in the care of their crops.
- Adaptability: This stepper pump adjusts to the exact amount of liquid being applied, optimizing farm efficiency and ensuring maximum performance.
- Flow rates: 1.5 to 60 liters per hour and the ability to adjust dosage up to 1000 times
- Suction Capacity: A proven suction capacity of more than 6 meters ensures a constant and uninterrupted flow, guaranteeing a homogeneous and effective distribution throughout the farm.
- Dosing Modes: With Dosmart BC, diferent configuration options as manual and proportional are available improve both efficiency and operational control for your needs. Equipped with a pulse input, the Dosmart BC allows proportional dosing management
| Modèles | Débit | Pression maximale | Turndown ratio | Course | Cycles/min. | ||
| l/h | gph | Bar | psi | mm | |||
| STAS50-D50 / STDS50-D50 | 1.5 | 0.40 | 16 | 232 | 1:1000 | 2 | 50 |
| STAF50-D50 / STDF50-D50 | 4 | 1.05 | 12 | 174 | 1:1000 | 2 | 95 |
| STAF30-D50 / STDF30-D50 | 8 | 2.10 | 8 | 116 | 1:1000 | 2 | 150 |
| STAF50-D69 / STDF50-D69 | 12 | 3.15 | 7 | 100 | 1:1000 | 2 | 85 |
| STAF30-D69 / STDF30-D69 | 24 | 6.30 | 5 | 72 | 1:1000 | 2 | 164 |
| STAF41-D69 / STDF41-D69 | 40 | 10.50 | 3 | 44 | 1:1000 | 4.5 | 113 |
| STAF31-D69 / STDF31-D69 | 60 | 15.80 | 2 | 29 | 1:1000 | 4.5 | 164 |
ELECTRICAL
Single phase: 100-250 Vac (50/60Hz) / 24 Vdc
Power: 32 W
MATERIALS
Diaphragm: PTFE
Cylinder: PP / PVDF / SS
Valves (body): PP / PVDF / SS
WEIGHT AND DIMENSIONS
4.5 kg/10 lb
